DME10
Built on the tried and tested Yamaha DME platform, the NEXO DME10 goes a step further than any other immersive processor by unlocking its raw processing power to users and allowing near limitless customisation.
A 256 x 256 channel open architecture processor , DME10 ships with 32 object inputs / 16 speaker outputs included as standard, expandable in blocks of 32 x 16, 64 x 32 and 128 x 64 via a flexible licensing structure. Need the full channel count for a show today but two completely independent 64 channel immersive processors tomorrow? You can do that .
With superior musical expression and sound field design, DME10 features 96kHz processing and is equipped with a wide range of DSP components that can be freely selected, connected, and configured, allowing for flexible system construction.
And such is the processing power of the DME10, separate speaker system and immersive processors are no longer required. It’s all inside DME10.
Need more than the 8 channels of parametric EQ per channel or some more dynamics at a specific point in the signal chain of your immersive design? No problem. Running 128 x 64 immersive processing only uses around 50% of the DME10’s processing resource.
Key Features
- Up to 128 object inputs / 64 speaker outputs AFC Image object-based mixing
- 256x256 Matrix Mixer at 96kHz as standard
- Dual Redundant power supplies for mission critical applications
- Easy system design, setup, and operation via ProVisionaire Design software
- Built-in processing solutions include - Dugan Automixer, Acoustic Echo Canceller, Delay Matrix, and FIR speaker processing
Specifications
| Internal processing | 44.1/48/88.2/96 kHz |
| Latency | 2.7 msec (at Rio-D2 Analog In/Out with Dante latency at 0.25msec, Dante through out on DME10) |
| Memory | Parameter sets: 1000, Snapshots:10000 |
| Cooling | Constant-speed fan x1 |
| NC value | NC20 (1m from front panel) |
| Air flow | Front to Rear |
| Dante Interface channel count | 256 input, 256 output, redundant |
| Dante Interface sampling frequency | 44.1/48/88.2/96 kHz |
| Dante Interface bit depth | 24/32 Bit |
| USB audio channel count | 8 input, 8 output with SRC |
| USB audio sampling frequency | 44.1/48/88.2/96 kHz |

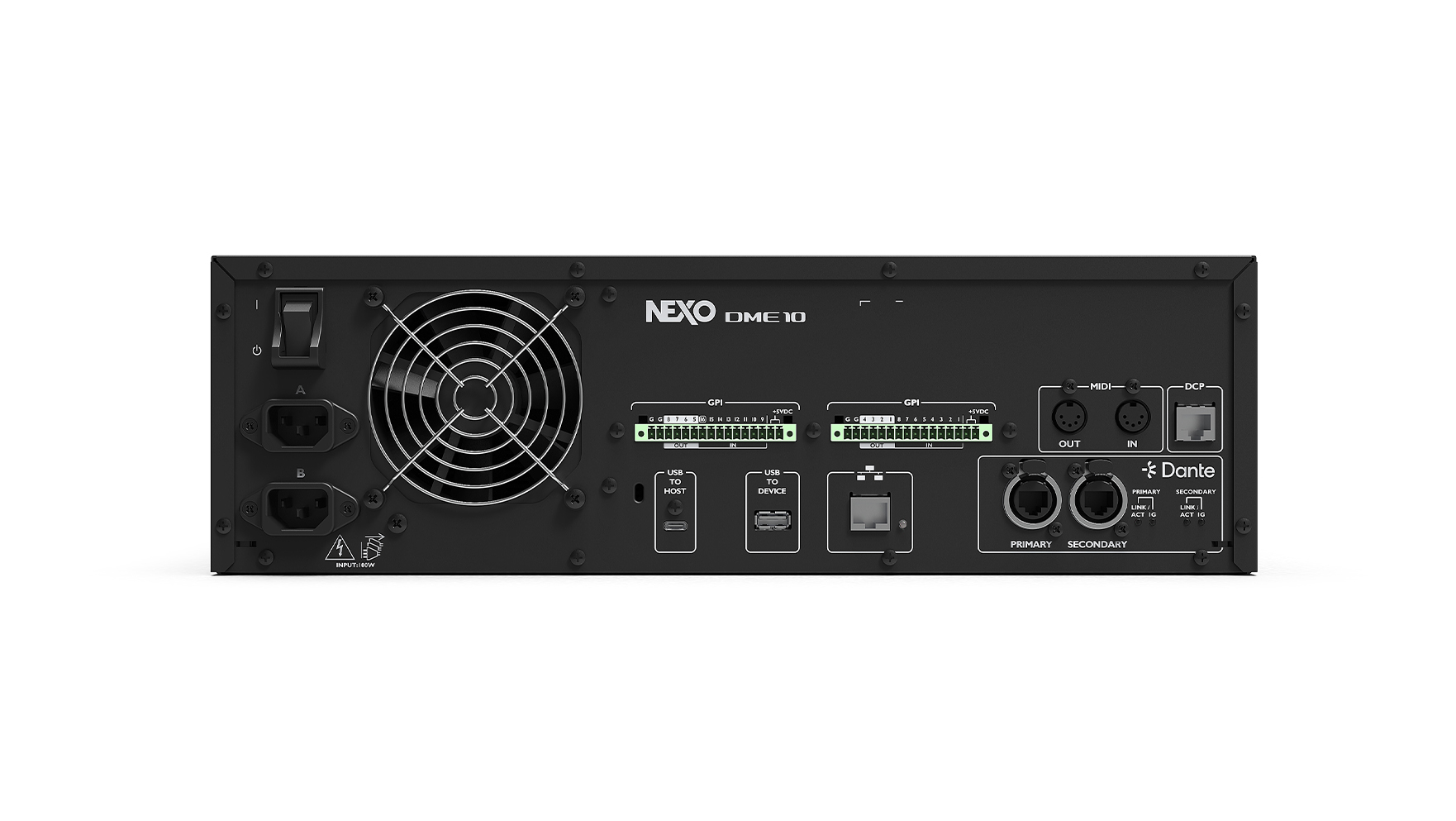

| Connectors / Dante | etherCON ×2 (PRIMARY / SECONDARY) 1000Base-T |
| Connectors / DCP | RJ45 x 1 |
| Connectors / USB TO HOST | USB 2.0 Type-C connector for USB audio |
| Connectors / USB TO DEVICE | USB 2.0 Standard-A Connector for Save/Load |
| Connectors / Network | RJ45 x 1, 100Base-TX |
| Connectors / GPIO | Euroblock 16 terminals (mini) x2 (GPI x16, GPO x8, +5V power supply x4) |
| Connectors / MIDI | DIN 5 pin ×2 (IN, OUT) |
| Connectors / AC IN | AC inlet (IEC, V-Lock) x 2 |
| Memory device specifications / Compatible formats | File format: FAT32, FAT16, FAT12 |
| Memory device specifications / Supported capacity | Maximum media capacity: SDHC: 32 GB, SD: 2 GB |
| Memory device specifications / Maximum file size | FAT12: 32MB, FAT16: 2GB, FAT32:4GB |

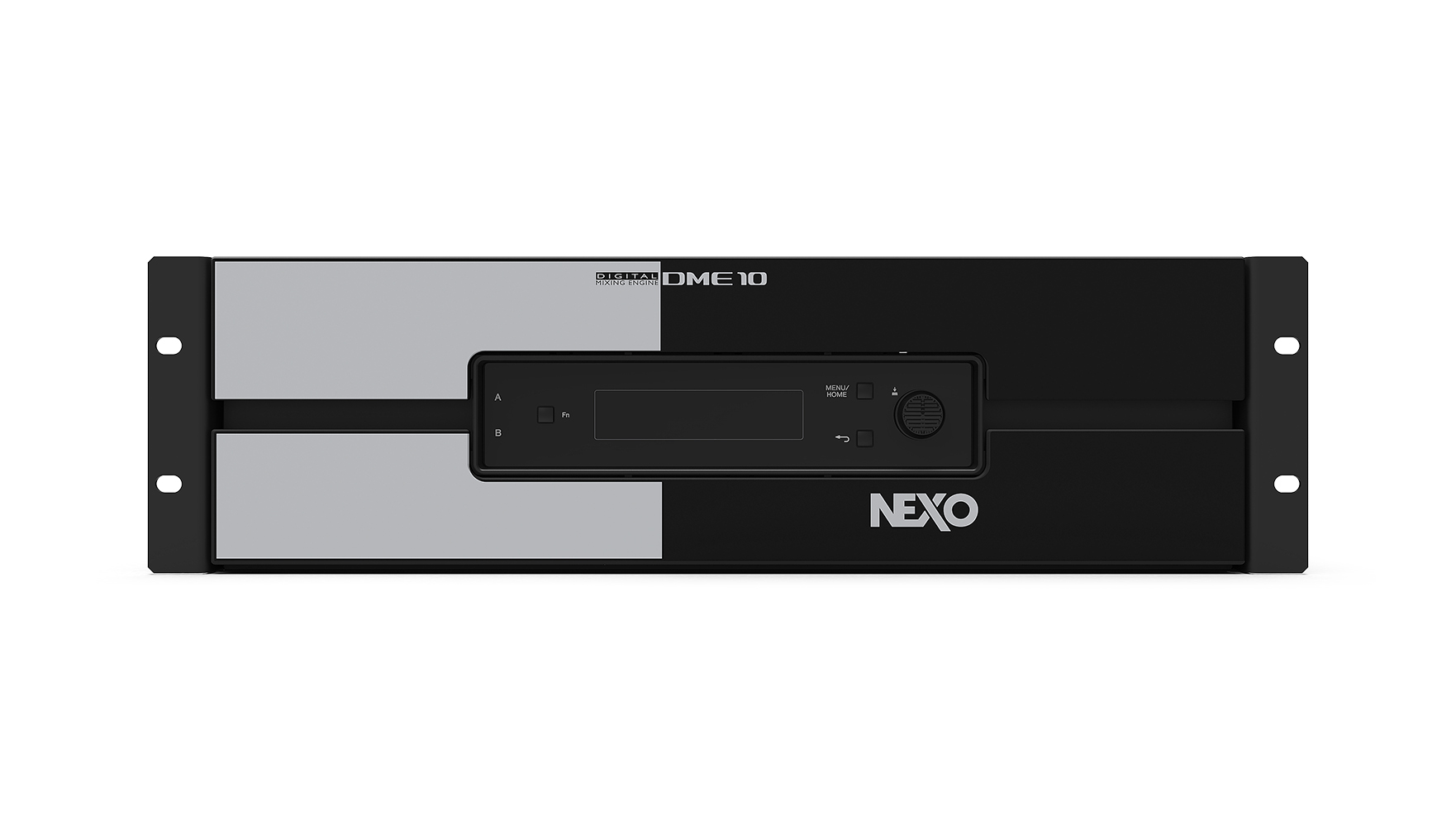

| User Interface / Front panel | Rotary encoder and buttons for GUI control, Operation lock feature (Full lock or Lock except volume and mute) |
| User Interface / Display | 224 × 48 pixels, mono color with brightness adjustment |
| Power requirements | 100V-240V 50Hz/60Hz |
| Power consumption | 100W |
| Heat dissipation | 86.3kcal/h |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 480 x 132 x 363 mm (3U) (18.90 x 5.20 x 14.29 inch) |
| Weight | 9.5 kg (20.94 lbs) |
| Packaged weight | 13 kg (28.66 lbs) |
| Finish | Front panel: Aluminum (Silver and black) Munsell approximate value N9 (Silver), N2.5 (Black) Handle: Metal (black paint) |
| RAL approximate value | RAL 860-1 (Silver) + RAL790-4 (Black) |
| Battery | CR2450 |
| Included accessories | Setup Guide, Two Euroblock plugs (16-pin, 3.50 mm pitch), Two power cords, One cable hook |
| Options | DCP1V4S-US/EU, DCP4S-US/EU, DCP4V4S-US/EU, DCH8 |
| Expansion license | NX-AFC-I |
