eLS600

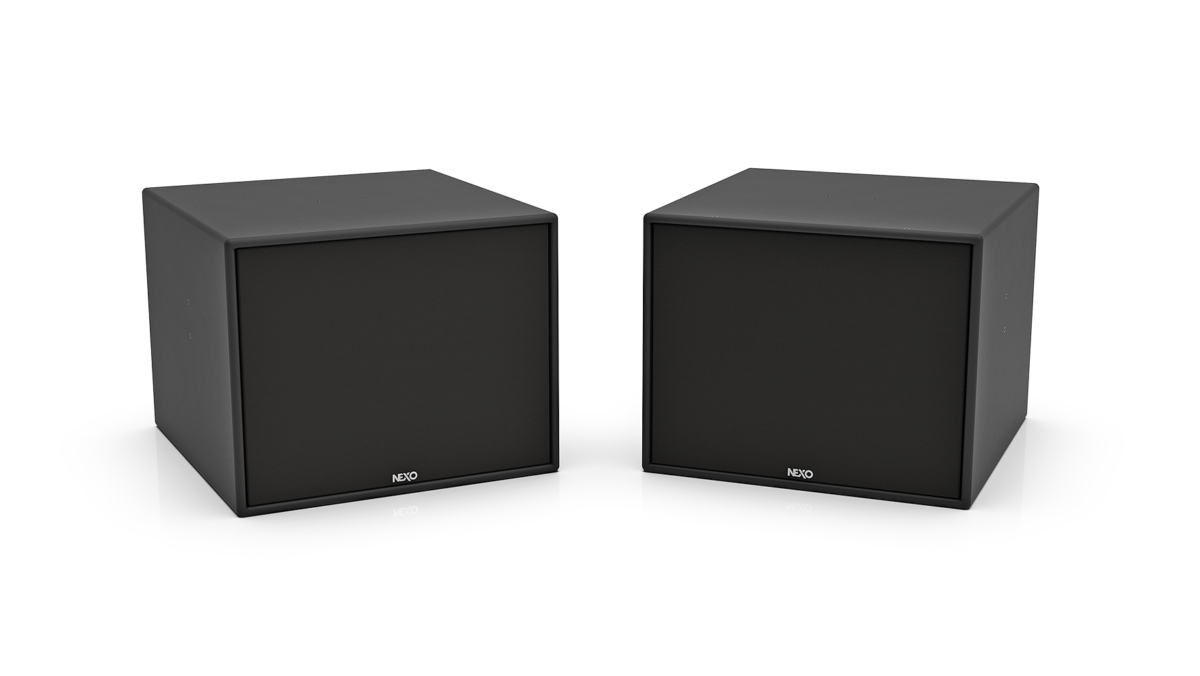

Measuring 423mm high x 531mm wide x 566mm deep and weighing 26.3Kg, the eLS600 sub uses a high excursion 15-inch driver in a cabinet constructed in a bass-reflex design. Constructed from 15mm baltic birch plywood, the cabinet is protected by a strong polyurethane based coating and the Magnelis® front grille is covered by a black UV and fire resistant cloth. Acheiving a peak SPL of 136dB with a frequency range extending down to 40Hz, the eLS600 features convenient rigging points and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
Key Features
- Installation sub with high-excursion 15-inch woofer
- Ideal companion to ePS10 installation loudspeaker
- Compact design that can be stacked or flown with ePS10 companion main speaker
- Discrete, easy to integrate design
- Solid construction using 15mm birch plywood enclosure
- IP55 protection level
- Comprehensive range of accessories for deploying the eLS400 in a wide variety of applications
Specifications
| Frequency Response @-6 dB | 45 Hz to 150 Hz |
| Sensitivity 1W@1m | 105 dB SPL Nominal |
| Peak SPL@1m | 136 dB |
| Crossover Frequency | 40-85 Hz, 40-120 Hz, 40-
150 Hz |
| Nominal Impedance | 4 Ω |
| Recommended Power | 850 to 1350 Watts / 4 Ohms |
Features
| LF Component | 1 x 15" 4 Ohms long excursion |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/-
poles) |
| Compatible cables section | Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section
section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 11 mm |
| Rigging points | 4 x pairs of M10 rigging points (two on each side) |
| Material | 15 mm thick birch plywood body and Magnelis® grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 423mm x 531mm x 566mm
(16.7" x 20.9" x 22.3") |
| Weight: Net | 26.3 kg (58 lbs) |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| IP Rating | IP55 |
| |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered
TDcontroller: 1 x eLS600 per
channel |
| Optional powering solution | DTD + DTDAMP4x1.3: 1 x
eLS600 per channel |
| NXAMP4x2mk2 Powered
TDcontroller: up to 2 x eLS600
per channel |
| NXAMP4x4mk2 Powered
TDcontroller: up to 2 x eLS600
per channel |
