ID14-I

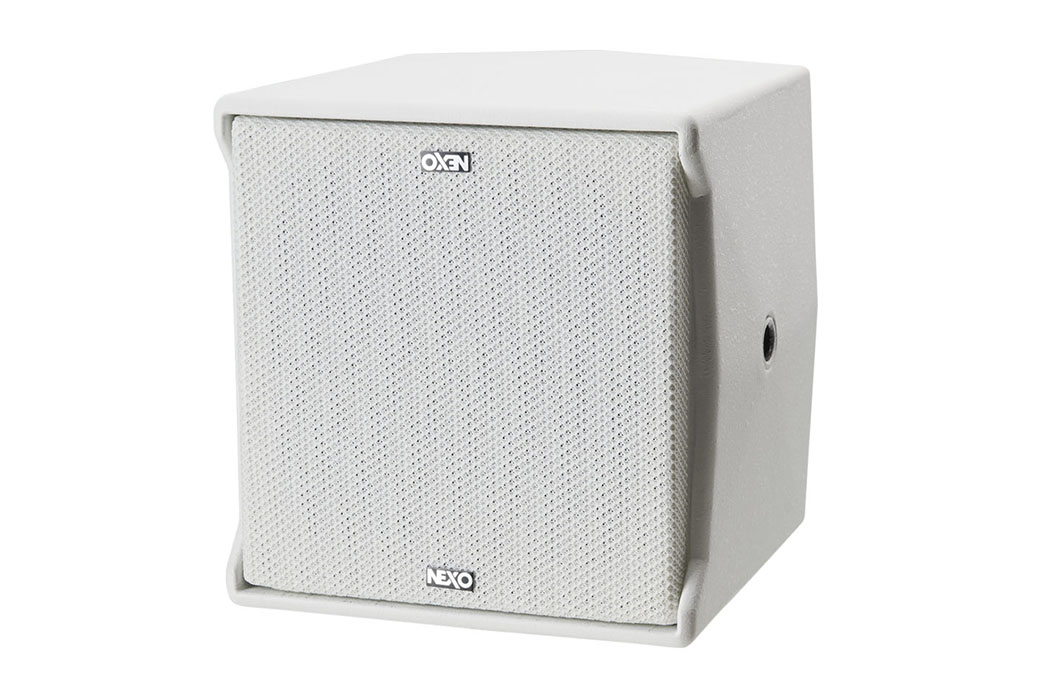

130mm wide, 130mm high and 120mm front to back, the ID14-I is a super-compact full range speaker employing a custom-designed coaxial driver with a 1.3″ voice coil for the 4″ LF component and a 1.4″ diaphragm for the HF motor, delivering smooth, clean sound and impressive power. The Installation version is available in black, white or custom RAL colours and features an an acoustic cloth over the front of the grille and captive 2-core cable connectivity.
Thanks to their fully symmetric design, there are there are no left or right versions of the ID14, so all speakers in the inventory can be the same. To ensure maximum versatility, the ID14 can be specified with either 100° x 100° or 90° x 140° HF dispersion.
Key Features
- Compact, high-powered sound reinforcement speaker
- 116 dB peak SPL
- Measures just 130mm W x 130mm H x 120mm D
- Available in 100° x 100° and 90° x 140° HF dispersion versions

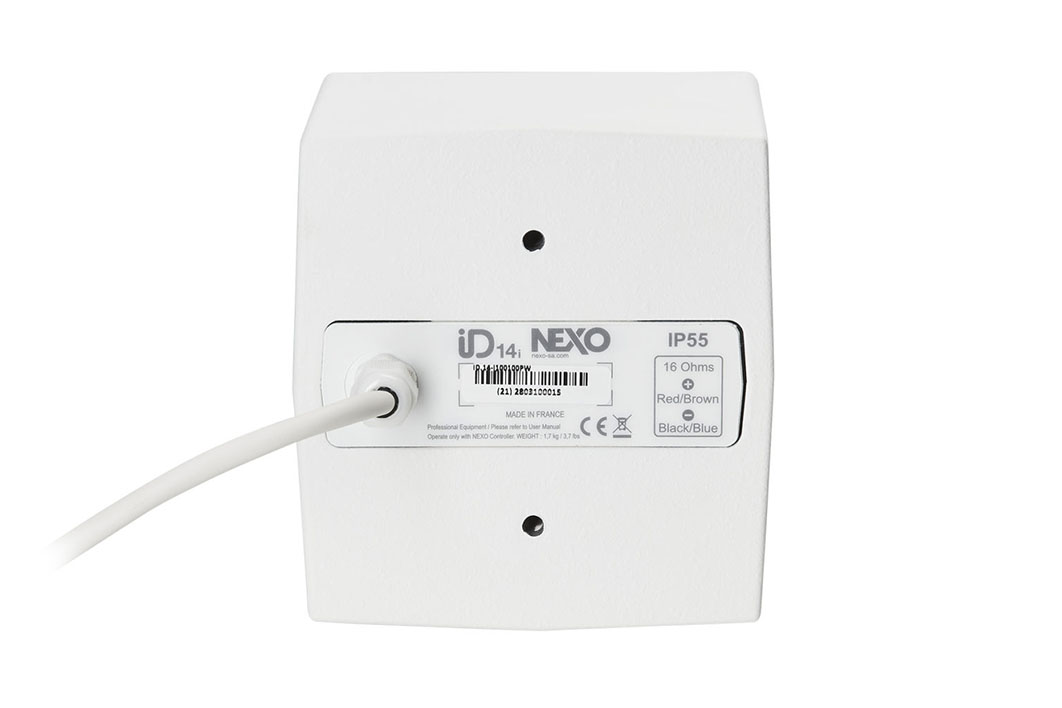

- IP55-rated installation version with 2-core cable connectivity
- Black, white and custom RAL colours
Specifications
| Frequency Response @-6 dB | 120 Hz to 20 kHz |
| Sensitivity 1W@1m | 95 dB |
| Peak SPL@1m | 116 dB |
| Available Crossover Frequencies | 120, 150 Hz |
| HF Dispersion (upon ordering) | 100° x 100° or 90° x 140° |
| Nominal Impedance | 16 Ohms |
| Recommended Power | 110 to 180 Watts / 16 Ohms (requires a 220 to 360 Watts / 8 Ohms amplifier) |
Features
| Number of ways | 2 ways passive |
| Components | 1 x Coaxial Neodymium LF 4” long excursion & HF 1.4“ diaphragm |
| Connectors | 1 x Cable gland with 2 cores cable |
| Rigging points | 1 x M10 on each side for dedicated U bracket + 2 x M6 / 73 mm pitch at the back |
| Construction | Polyurethane |
| Finish | Black: Raw sandblasted polyurethane / White: Structural paint |
| Front Finish | UV Resistant acoustic fabric fitted Magnelis® front grill |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| Height x Width x Depth | 130 mm x 130 mm x 120 mm (5.1” x 5.1” x 4.7”) |
| Weight: Net | 1.7 kg (3.7 lbs) |
| System Operation | |
| Recommended powering solution | DTDcontroller + DTDAMP4x0.7 : up to 4 x ID14 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x1.3 : up to 4 x ID14 per channel |
| NXAMP4x1mk2 Powered TDcontroller: up to 8 x ID14 per channel | |
| NXAMP4x2mk2 Powered TDcontroller: up to 8 x ID14 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: up to 8 x ID14 per channel |
