ID24-I

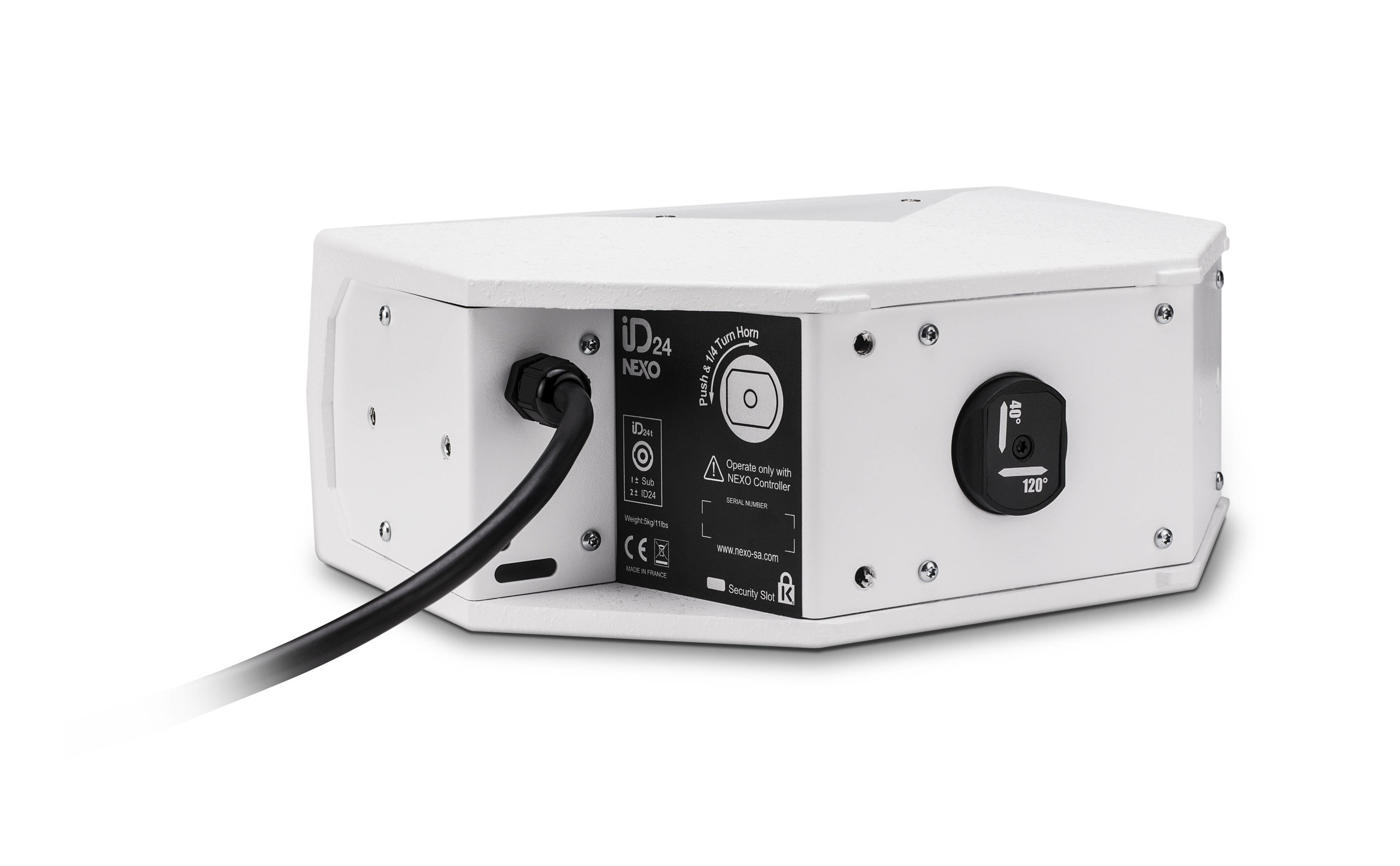

Spec’d for the installation professional and designed for the widest range of applications, ID24-I (install spec) features threaded holes for compatibility with NEXO and 3rd-party mounting hardware. For rapid installation ID24-I is equipped with captive cable for fast, secure connectivity with existing wiring. Install models are available in Black or White with a matching fabric grille.
Key Features
- Compact, high-powered sound reinforcement speaker
- Measures just 309mm W x 132mm H x 233mm D
- Rotatable horn for 60° x 60°, 90° x 40°, 120° x 40° or 120° x 60° (according to horns) HF coverage
- Dedicated Install version with captive cable connectivity
- Available in black or white with cloth grille
- Threaded holes for compatibility with NEXO and other installation hardware
Specifications
| Frequency Range | 95Hz – 20kHz (+/- 6dB) |
| Sensitivity (1W / 1m) | 100dB SPL Nominal |
| Peak SPL Level (1m) | 126dB Peak |
| HF Dispersion Selection (according to horns) | Selection of: 60°x60°, 90°x40° |
| 120°x40°, 120°x60° |
| Nominal Impedance | 16Ω |
| Recommended Amplification per box | 200 to 500W |
Features
| Components | LF: 2x4" – Long excursion – Neodymium magnet |
| HF: 1" voice coil ½" throat – Neodymium magnet |
| Height x Width x Depth | 132 x 309 x 233mm (5.2" x 12.2" x 9.2") |
| Weight | 6 Kg (13 lbs) |
| Material | Water-resistant Polyurethane |
| Finish | White: Structural paint, Black: Raw sandblasted polyurethane |
| Grille | Stainless steel, Acoustic fabric, black or white |
| Rigging | 6x 6mm threaded inserts |
