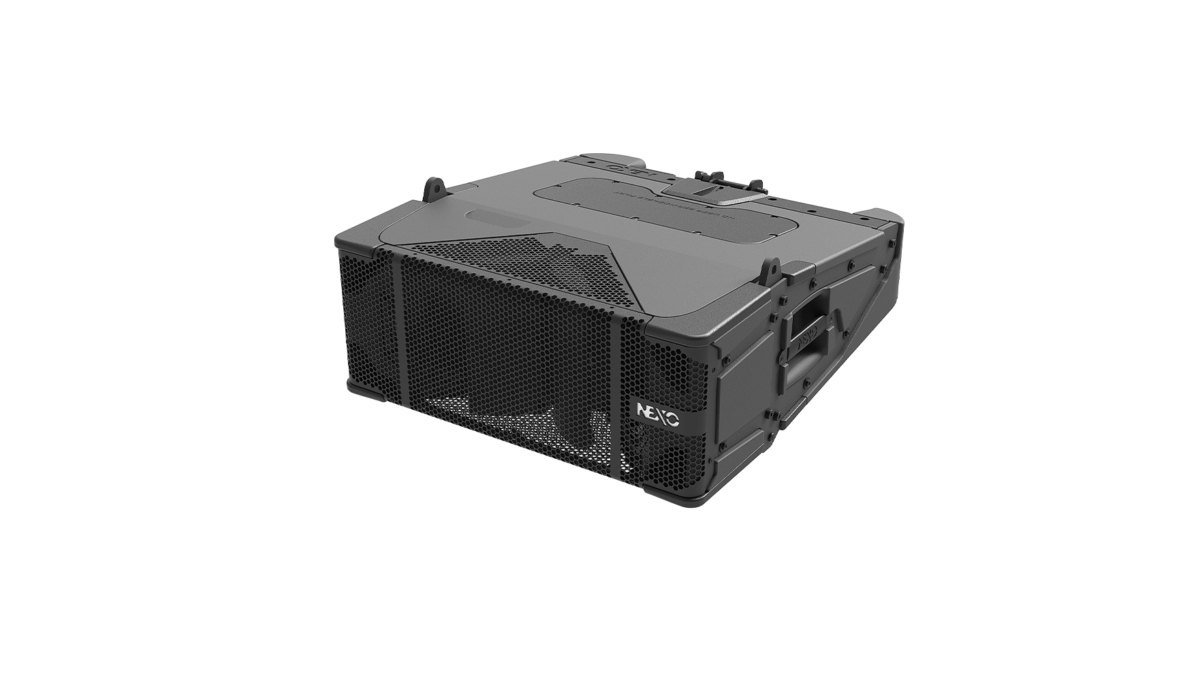

M28
90°/120°의 수평 커버리지와 모듈 사이의 0°-15°의 분사 각도를 제공하는 콤팩트한 2 x 8인치 드라이버 라인 어레이 제품. M28은 혁신적인 CompassRigTM 및 REDLockTM 연결: 소규모 팀이 모든 크기의 시스템을 안전하게 플라잉 시킬 수 있습니다. CompassRigTM을 사용하면 캐비닛 간 각도 값을 미리 설정할 수 있습니다. REDLockTM 핸들은 캐비닛 후면에서 전면의 연결 핀을 조정하여 잠급니다. 모든 조정은 클러스터 뒤쪽에서 이루어집니다.
Key Features
- 2 x 8 inch LF Drivers
- 2 x HF Compression Drivers
- 141dB peak SPL
- Frequency response: 65Hz-19kHz
- H234mm/W575mm/D653mm
- 37Kg/82lb
Specifications
| Frequency Response | 65Hz – 19kHz ±3dB |
| Usable Range @-6dB | 60Hz – 20kHz |
| Sensitvity 1W@1m | 106dB SPL Nominal (120° horizontal coverage) 107dB
SPL Nominal (90° horizontal coverage) |
| Peak SPL@1m | 140dB Peak (120° horizontal coverage) 141dB Peak (90°
horizontal coverage) |
| Dispersion | Configurable 90°-120° Horizontal x 0-15° vertical |
| Available Crossover
Frequencies | 900Hz (Active) |
| Nominal Impedance | LF: 8 Ω (6 Ω min) - HF: 8 Ω (6 Ω min) |
| Amplified Controller | NXAMP4x4 - 3xSTM M28 in parallel on 2 NXAMP4x4
channels - 2x4000W/2Ω |
Features
| Components | LF: 2 x 8" (20cm) high excursion 16 Ω Neodymium
drivers |
| HF: 2 x 2.5" voice coil, 1.4" throat Neodymium 16 Ω
drivers, Ketone Polymer diaphragm |
| Height x Width x Depth | 234 x 575 x 653 mm – 9.2" x 22.6" x 25.7" |
| Weight: Net | 37 kg – 82 lbs |
| Connectors | 2 x NLT4-MDV Speakon
4 poles |
| Construction | PU Composite Low Density – Polyurethane water based
black coating |
| Fittings | 2 x side handles / 1 x rear handle |
| Front Finish | Perforated Dark Grey Metal Grille |
| Rigging | Integral 3 points flying system. Intercabinet angle adjustments
from 0.2° to 15° in logarithmic steps. |
| System Operation | |
| Electronic Controller | The NEXO NXAMP4x4 presets are precisely matched
to the STM Series cabinets and include sophisticated
protection algorithms. Using STM Series cabinets without
a properly connected NEXO NXAMP4x4 will result in poor
sound quality and can damage components. |
| Speaker cabling | 1-/1+: LF - 2-/2+: MF/HF |
