The world's most advanced compact line array

Compact, yet powerful

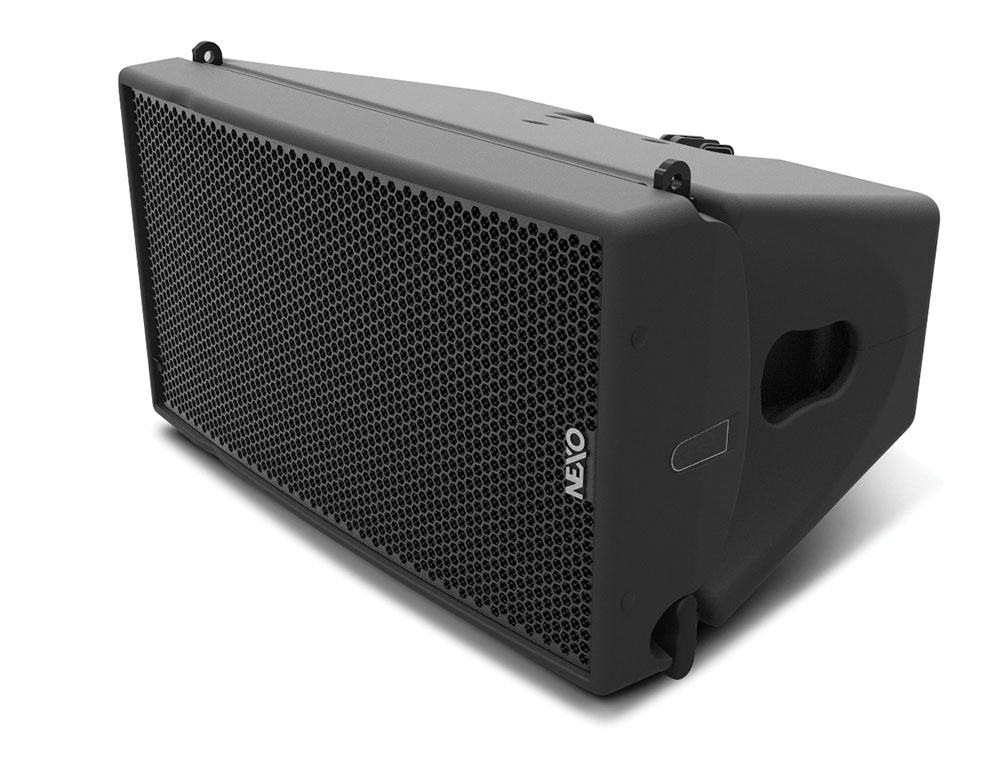

Just 531mm wide and 21Kg in weight, NEXO’s extraordinary GEO M10 combines a number of patented technologies with advanced DSP control and integral, ‘no loose parts’ rigging to create a compact, powerful, wide-bandwidth module that’s quick and easy to deploy in flown arrays or groundstacks. Favouring innovative new thinking over conventional line array wisdom, GEO M10 partners a 1.4″ titanium diaphragm HF driver with a single, Neodymium-magnet 10” driver and delivers an unprecendented ratio of LF response to cabinet size, outperforming many larger, dual-driver designs. And with a maximum SPL of 131dB, GEO M10 is twice as powerful as its sister-system, the GEO M6, making it ideal for speech and music events with larger audiences.

Fly or stack, it's a one-person job

GEO M10 is a system that is as easy for one person to fly as it is to stack, with or without subs. Main cabinets feature convenient handles on the back and sides, while the MSUB15 has handles on each side. All GEO M10 cabinets use an ingenious, TÜV-compliant, AutoRig™ integral rigging system with no external or loose parts. The rigging can held in the ‘open’ position, locking closed when the next box is located, making it easy for one pair of hands to configure systems straight out of the flightcases. A total of 9 rigging angles are available which can be set quickly and easily from the rear of the cabinet using a single, integrated ball lock and cable tie, and a guide to hole alignment.

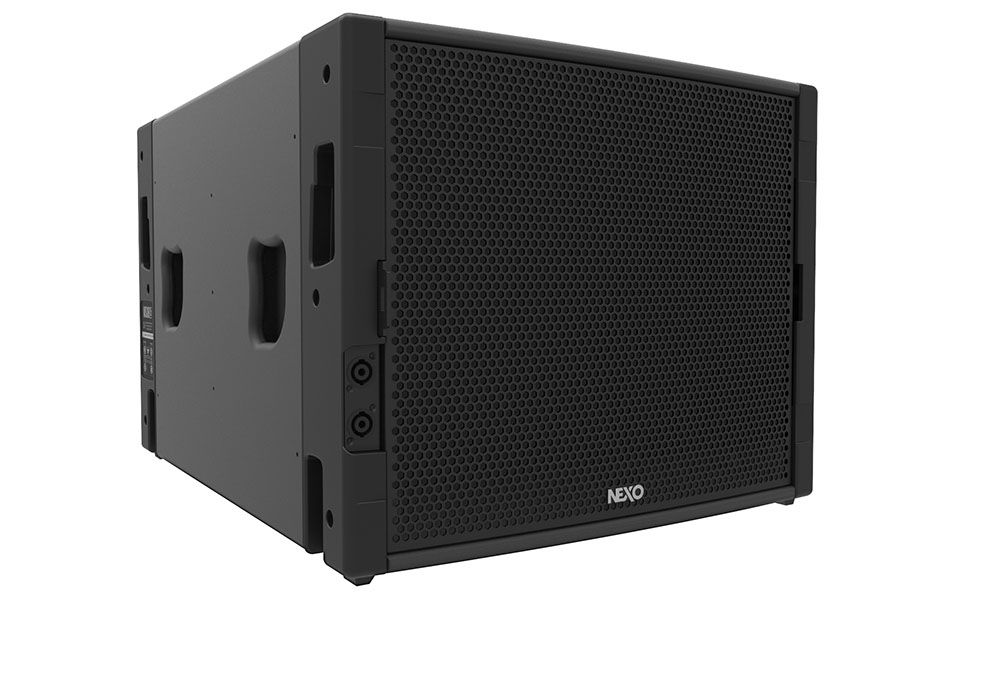

A dedicated sub

Measuring 426mm wide x 531mm high x 700mm deep and weighing 40Kg, the MSUB15 is the same width as the GEO M10 main cabinet, and 50% higher. Employing a single 15″ diameter / 3″ voice coil Neodymium driver, the MSUB15 features internal rigging and can be deployed in Omni or Cardioid modes, in flown arrays or groundstacks.

GEO M10 for theatres and conferences

GEO M10 is a great choice for theatres and conference halls in both mobile and fixed installations. Using the Touring Bumper to fly 2 x MSUB15s with 6 x GEO M1012 per side weighs in at under 250Kg to make a compact system that leaves sight lines unaffected from every seat in the house. Adding 2 x MSUB15s on the floor necessitates a total of 1 x NXAMP4x4 per side to power the entire system.

GEO M10 for live events

GEO M10 groundstacks are the perfect sound reinforcement solution for live events. Quick and easy to deploy, this system uses the Touring Bumper to configure stacks of 2 x MSUB15s with 3 x GEO M1012 cabinets on top. And just one NXAMP4x4 is all it takes to power and control a highly-capable stereo system that’s equally suitable for speech and music.

GEO M10 for public spaces

Compact, light in weight and with extended LF response down to 59Hz, GEO M10 makes for a potent yet visually unobtrusive sound reinforcement system in public spaces such as airports and theme parks. These ‘3 box’ arrays use the Light Bumper, and up to 4 (12 boxes in total) can be powered by one NXAMP4X4, networkable over Dante, EtherSound or AES.

GEO M10 for live music

Larger GEO M10 arrays are ideal for live music with audience capacities of up to 1000. This system flies both main boxes and subs: 12 x GEO M1012 per side using the Light Bumper and 8 x MSUB15s with the fourth and eighth sub from the top reversed. One NEXO NUAR rack per side provides power for this stereo system.
